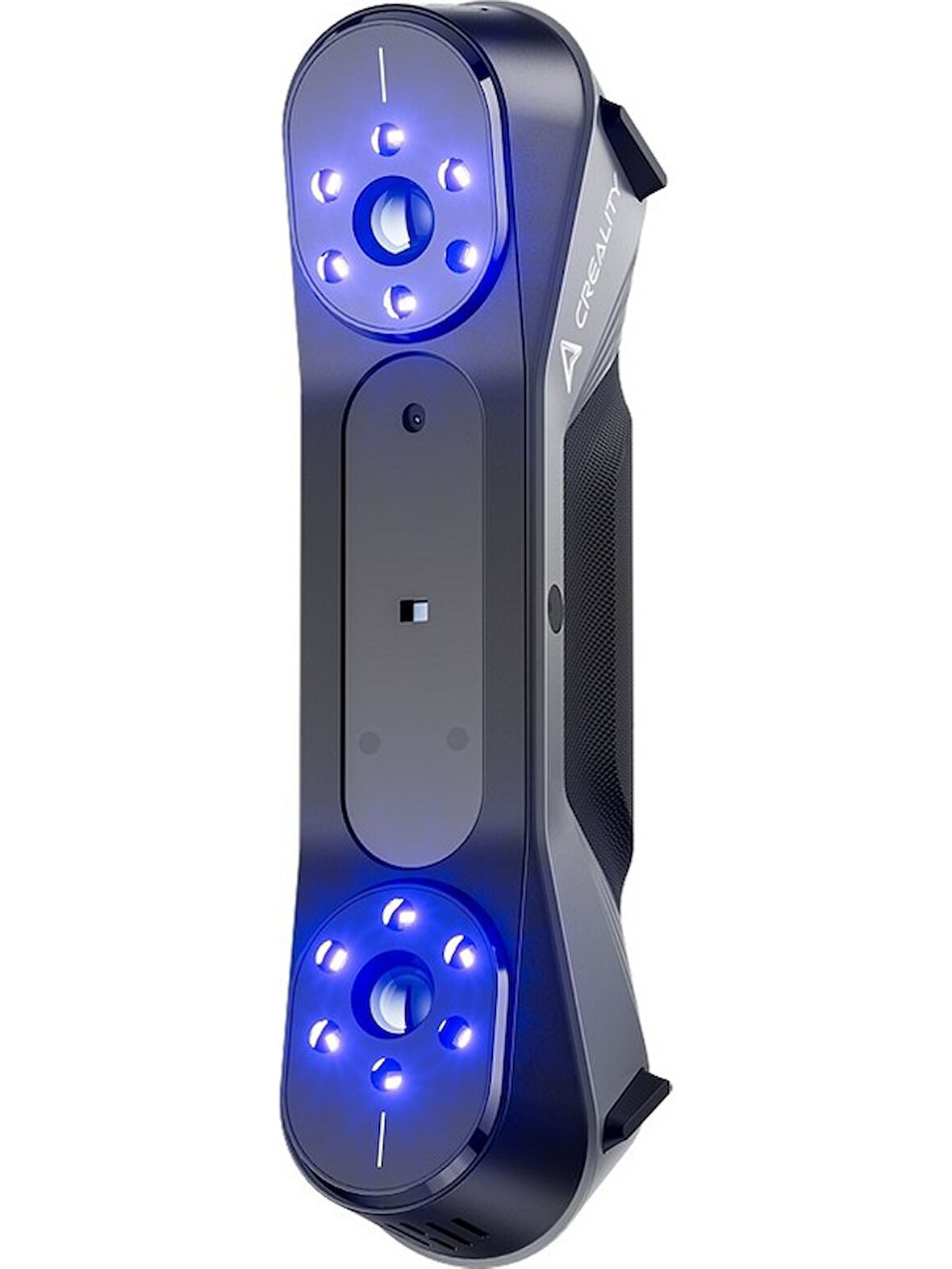

    Creality Cr-Scan Raptor 3D Scanner

    Crealıty
    Creality Cr-Scan Raptor 3D Scanner
    Tüm Ürün Açıklamasını Gör

    Son 30 Günün En Düşük Fiyatı

    70.000,00 TL

    Satıcı: Lusi

    10.0

    Mağazaya Git

    Diğer Tarayıcılar, Scanner Ürünleri

    Tüm Crealıty Ürünleri

    Ürün Açıklaması

    Creality 3D Creality Cr-Scan Raptor 3D Scanner


    20 fps'ye kadar NIR Tarama Hızı.

    Creality ve domirobot tavsiye ediyor;







    Teknik Özellikleri:

    Scanning Mode: Blue Light(Blue 7-line laser) / NIR(infrared binocular structured light)
    >>Blue Light(Blue 7-line laser) Mode:
    Accuracy: Up to 0.02mm @ 100mm [1]
    3D Resolution: 0.02-2mm
    Scanning Speed: Up to 60fps
    Min. scanvolume: 5mm x 5mm x 5mm
    Single Capture Range: 270mmx170mm@300mm
    Working distance: 150mm-400mm
    Color Mapping: Yes
    Alignment mode: Marker
    >>NIR(infrared binocular structured light) Mode:
    Accuracy?Up to 0.1mm
    3D Resolution?0.1-2mm
    Scanning Speed?Up to 20fps
    Single Capture Range?930mmx580mm@1000mm
    Working distance: 170mm-1000mm
    Color Mapping: Yes
    Alignment mode: Marker / geometry / texture
    General Parameters:
    3D imaging camera resolution: 1920x1200
    Color Supplemental Light: 12 white LEDs
    Marker Recognition Enhancement: 12 infrared LEDs
    Laser Safety: Class I (eye safe)
    Button: Mechanical
    IMU: Yes
    Output format: OBJ/STL/PLY
    Input Power: 12V 2A
    Data interface: TypeC/USB3.0
    Device Dimensions: 215mmx50mmx74mm
    Device Weight: 372g
    Calibration board: High-precision glass calibration board
    Wireless Scanning: Supported in conjunction with future wireless scanning accessories
    System Support?Windows/macOS
    Operating temperature?-10°C to 40°C
    Operating humidity: 0-90%RH
    Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.

    Ürün Özellikleri

    Ürün Türü 1200 DPI
    Garanti Süresi 2 Yıl
    Hızlı Tarama Var
