    3B Hareket Sensörü (Gesture Sensor)

    DFRobot
    3B Hareket Sensörü (Gesture Sensor)
    Tüm Ürün Açıklamasını Gör

    2.054,93 TL

    2.030,86 TL

    Satıcı: Robotistan

    9.5

    Mağazaya Git

    Diğer Arduino Parçaları ve Setleri Ürünleri

    Tüm DFRobot Ürünleri

    Ürün Açıklaması

    INTRODUCTION

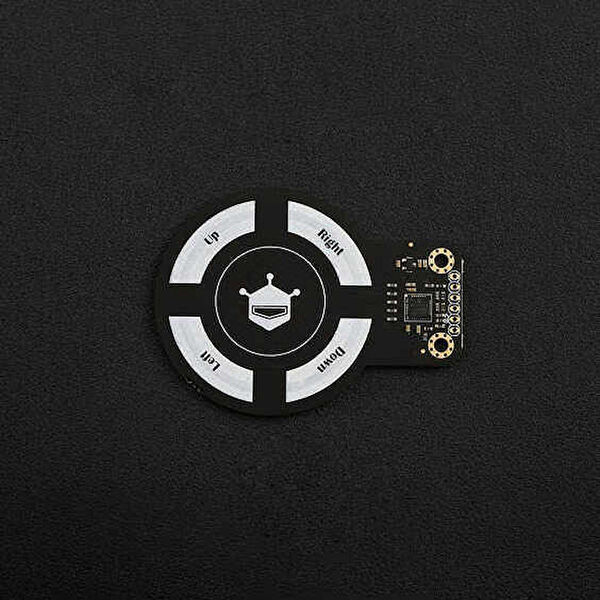

    The DFRobot 3D gesture sensor is an interactive sensor that integrates 3D gesture recognition and motion tracking. This gesture sensor can be used to detect clockwise/counterclockwise rotation and movement directions.

    The gesture sensor is designed based on Microchip patent GestIC® technology, using electric near field sensing technology, including 3D gesture input sensing system and advanced 3D signal processing unit. The effective detection range is 0-10cm. This gesture sensor can be applied to various interactive projects.

    2 Magical Sensors from DFRobot

    Arduino Password Unlock with 3D Gesture Sensor DFROBOT

    3D Gesture Sensor Explained | Electric Near Field Sensing Technology | GestIC Technology

    SPECIFICATION

    • Operating Voltage: 3.3 - 5V
    • Interface Type: I2C
    • I2C Address: 0x42
    • Gesture Detection Range: 5cm
    • Distance Induction Range: 10cm
    • Dimensions : 72 x 54 mm / 2.83 x 2.12"
    • Operating Temperature: - 20 ℃ ~ + 85 ℃
    • Spatial Resolution: 150 dpi

    DOCUMENTS

    • 3D Gesture Sensor wiki
    • More Documents

    SHIPPING LIST

    • 3D Gesture Sensor mini x1
    • XH2.54-6P pin header x1

    TUTORIAL

    • Sensor Kit Free Trial
