    Ürün Açıklaması

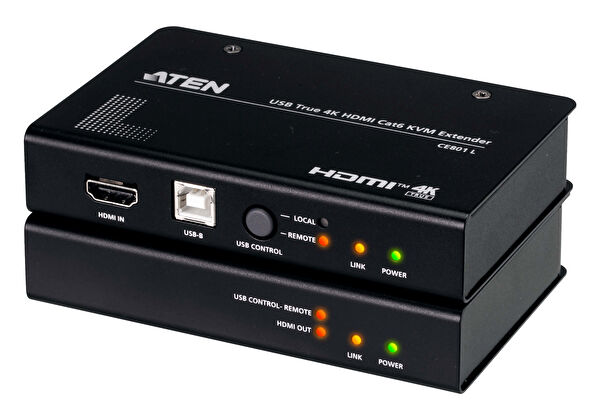

    USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m)

    • Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 70 m over a Cat 6 cable
    • Long reach mode – 1080p extension up to 100 m
    • Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance
    • Dual console USB keyboard / mouse operation - control privilege between the remote and local units switchable via USB control mode pushbutton
    • Supports HDR 10 for enhanced video quality
    • Supports wide screen format
    • Supports digital audio formats such as 7.1ch Dolby and DTS audio
    • Plug-and-play with no software or driver required
    • Built-in 8KV/15KV ESD protection
    • Rack-mountable
    • DC Jack with screw-lock ensures stable and secure connection
    Function CE801L CE801R
    Connectors
    Console Ports 1 x HDMI Female (Black)
    2 x USB Type A Female (White)*

    * For Keyboard & Mouse only    		 1 x HDMI Female (Black)
    2 x USB Type A Female (White)*

    * For Keyboard & Mouse only
    KVM Ports 1 x HDMI (Female, Black)
    1 x USB Type B (Female, White)    		 N/A
    RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
    Power 1 x DC Jack with locking 1 x DC Jack with locking
    Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
    Video
    Compliance HDMI (4K/60Hz); 4K HDR
    HDCP2.3 Compatible    		 HDMI (4K/60Hz); 4K HDR
    HDCP2.3 Compatible
    Max. Resolution 3840 x 2160 @ 60Hz (4:4:4) 3840 x 2160 @ 60Hz (4:4:4)
    Max. Resolutions / Distance 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a /ATEN 2L-29330 Cat 6 cable)
    1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable with Long reach mode enabled )    		 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable)
    1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable with Long reach mode enabled )
    LEDs
    Power 1 (Green) 1 (Green)
    Link 1 (Orange) 1 (Orange)
    Video N/A 1 (Orange)
    Console Status 2 (Orange) 1 (Orange)
    Switches
    DIP 1 x 2 pin N/A
    Pushbuttons
    Operating Mode Selection 1 x Pushbutton N/A
    Power Consumption DC5V:2.59W:28BTU/h

    Note:
    ● The measurement in Watts indicates the typical power consumption of the device with no external loading.
    ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.    		 DC5V:1.88W:13BTU/h

    Note:
    ● The measurement in Watts indicates the typical power consumption of the device with no external loading.
    ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
    Environmental
    Operating Temperature 0-40˚C 0-40˚C
    Storage Temperature -20-60˚C -20-60˚C
    Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
    Physical Properties
    Housing Metal Metal
    Weight 0.32 kg ( 0.7 lb ) 0.31 kg ( 0.68 lb )
    Dimensions (L x W x H) 12.80 x 8.21 x 2.50 cm
    (5.04 x 3.23 x 0.98 in.)    		 12.80 x 8.15 x 2.50 cm
    (5.04 x 3.21 x 0.98 in.)
    Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

    Remote HDMI out 640 x 480 @ 60/67/72/75 Hz 1600 x 1200 @ 60 Hz
    640 x 480 60 Hz (4:3) 1680 x 1050 @ 60 Hz
    480p 60 Hz (4:3)/(16:9) 1920 x 1080 @ 60 Hz
    576p 50 Hz (4:3)/(16:9) 720p 50/60 Hz
    800 x 600 @ 56/60/72/75 Hz 1080i 50/60 Hz
    1024 x 768 @ 60/70/75 Hz 1080p 24/25/30/50/60 Hz
    1280 x 800 @ 60 Hz 1080p 60 Hz
    1280 x 1024 @ 60/75 Hz 3840 x 2160p 24/25/30 Hz
    1400 x 1050 @ 60 Hz 3840 x 2160p 50/60 Hz 4:2:0
    1440 x 900 @ 60 Hz

    Bu İlan Doğuş Bilişim Entegrasyon Sistemleri Tarafından Yayınlanmıştır.

    Ürün Özellikleri

    Ethernet Port Sayısı 1
    HDMI Standardı 2.0
    Ethernet Var
    Ürün Tipi Hdmi Çevirici
    Bağlantı Türü Kablolu
