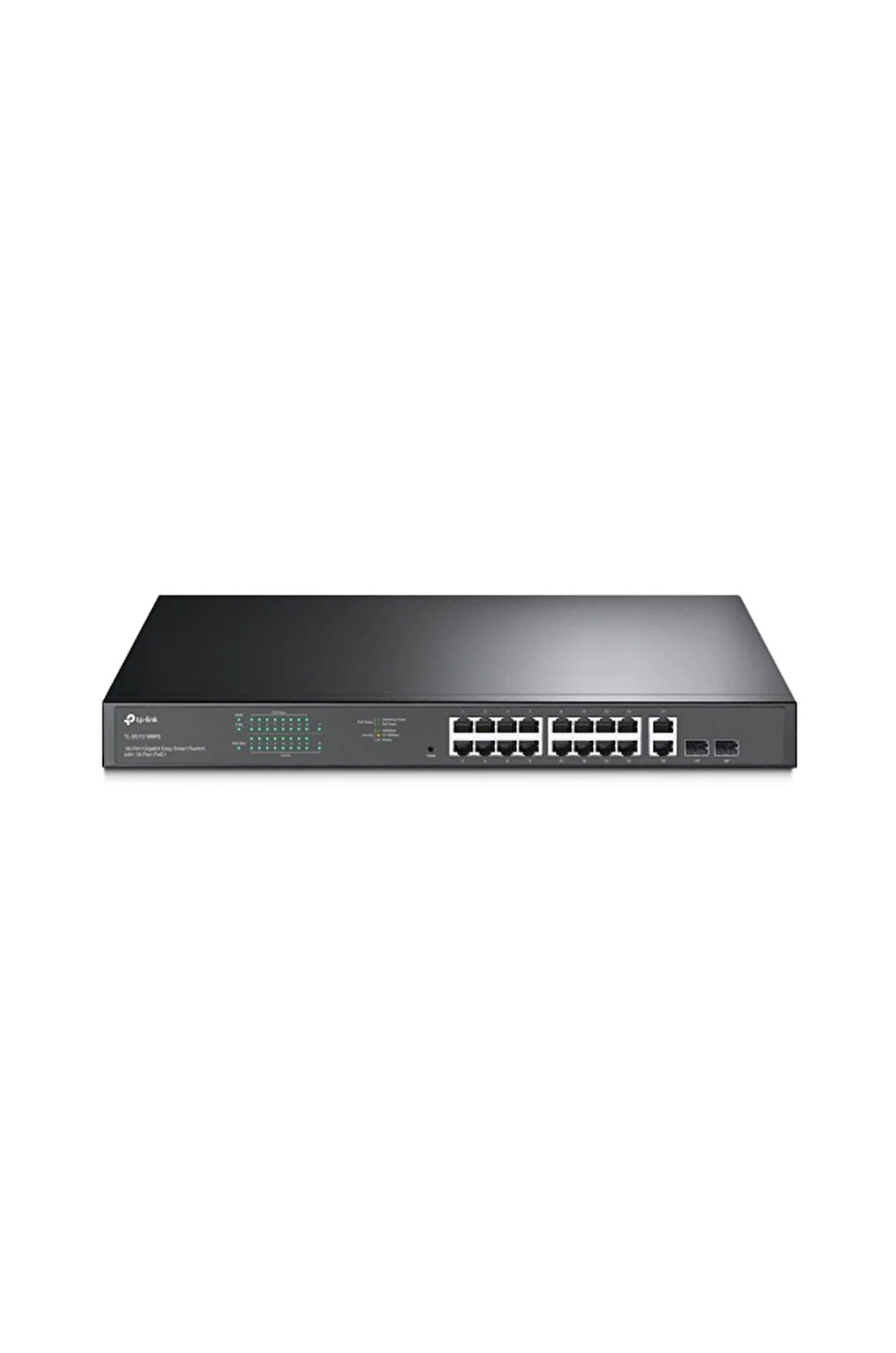

TP-LINK SG1218MPE, 16 Port, Gigabit, PoE 250W, 2 Port Gigabit Combo SFP, Rackmount, Yönetilebilir, Switch

Teknik Özellikler Port Sayısı: 18 ADET PoE Desteği: 16 ADET SFP Yuva: 2 ADET Rack Kasa: UYUMLU Veri Transfer Hızı: 1Gbps Yönetim: YÖNETİLEBİLİR DONANIM ÖZELLİKLERİ Standartlar ve Protokoller IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p Arabirim • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Combo Gigabit SFP Ports Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF Fan Sayısı 2 Fans Fiziksel Güvenlik Kilidi Yes Güç Kaynağı 100–240V AC, 50/60 Hz PoE+ Portları (RJ45) • Standard: 802.3at/802.3af compliant • PoE+ Ports: Ports 1–16 • Power Supply: 250 W Boyutlar ( W X D X H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Montaj Rack Mountable Maks. Güç Tüketimi • 21.4 W (220/50Hz. no PD connected) • 296.3 W (220/50Hz. with 250 W PD connected) Max Heat Dissipation • 72.97 BTU/h (no PD connected) • 1010.38 BTU/h (with 250 W PD connected) PERFORMANS Anahtarlama Kapasitesi 36 Gbps Paket Yönlendirme Hızı 26.78 Mbps MAC Adres Tablosu 8K Paket Buffer Belleği 4.1 Mbit Jumbo Frame 10 KB YAZILIM ÖZELLİKLERİ Quality of Service • Support Port-based 802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control L2 Özellikleri • IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • PoE Auto Recovery VLAN • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN Yönetim • Web-based GUI • Easy Smart Configuration Utility İletim Metodu Store-And-Forward
