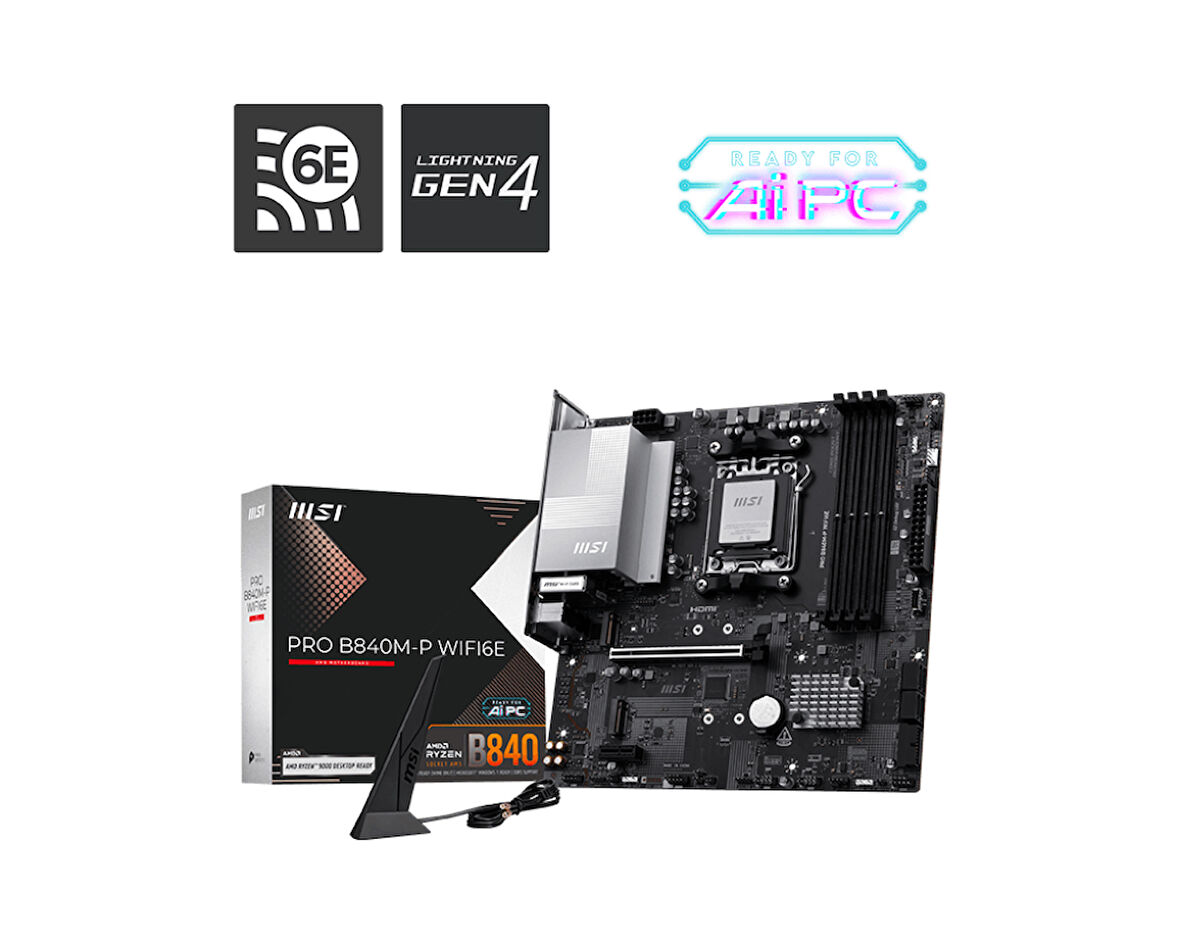

    MSI PRO B840M-P WIFI6E AM5 DDR5 8000MHZ(OC) HDMI ,2X M.2 USB 5 GBS 2.5G LAN WI-FI 6E MATX

    Msi
    MSI PRO B840M-P WIFI6E AM5 DDR5 8000MHZ(OC) HDMI ,2X M.2 USB 5 GBS 2.5G LAN WI-FI 6E MATX
    Tüm Ürün Açıklamasını Gör

    10.304,05 TL

    9.723,89 TL

    Satıcı: UZMANLARPC

    8.8

    Mağazaya Git

    Diğer Ram, Bellek Ürünleri

    Tüm Msi Ürünleri

    Ürün Açıklaması

    ChipsetAMD B840
    CPUSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
    Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8000+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 5600+ MT/s

    Supports AMD POR Speed and JEDEC Speed
    Supports Memory Overclocking and AMD EXPOTM
    Supports Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM, Clock Driver bypass mode only*

    * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
    • The DIMM slots on this motherboard only have single-sided latches.
    • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
    Onboard Graphics1x HDMI™
    Support HDMITM 2.1, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot1x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

    PCI_E1 slot
    • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
    AudioRealtek® ALC897
    7.1-Channel High Definition Audio
    Storage2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G

    M2_2 slot
    • Supports up to PCIe 4.0 x4
    • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

    *Please refer to the manual for M.2 SSD heatsink restrictions.
    RAIDSupports RAID 0, RAID 1, and RAID 10 for SATA storage devices
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USB4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    1x USB 5Gbps Type C (Front)
    1x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Rear)
    LANRealtek® 8125D 2.5G LAN
    Internal IO1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Combo Fan (Pump_Sys Fan)
    3x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 5Gbps Type C ports
    WIRELESS LAN & BLUETOOTHWi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3**, FIPS, FISMA

    * 6GHz band support may depend on every country’s regulations and Wi-Fi 6E will be ready in Windows 11 version 24H2.
    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
    LED FEATURE4x EZ Debug LED
    1x EZ Memory Detection LED
    BACK PANEL PORTS
    1. Clear CMOS Button
    2. HDMI™
    3. USB 10Gbps Type-A
    4. USB 2.0
    5. 2.5G LAN
    6. Wi-Fi / Bluetooth
    7. Audio connectors
    8. Flash BIOS Button
    9. USB 10Gbps Type-C
    10. USB 5Gbps Type-A

    OPERATING SYSTEMSupport for Windows® 11 64-bit
    BOX CONTENT
    PCB InfomATX
    243.84mmx243.84mm
