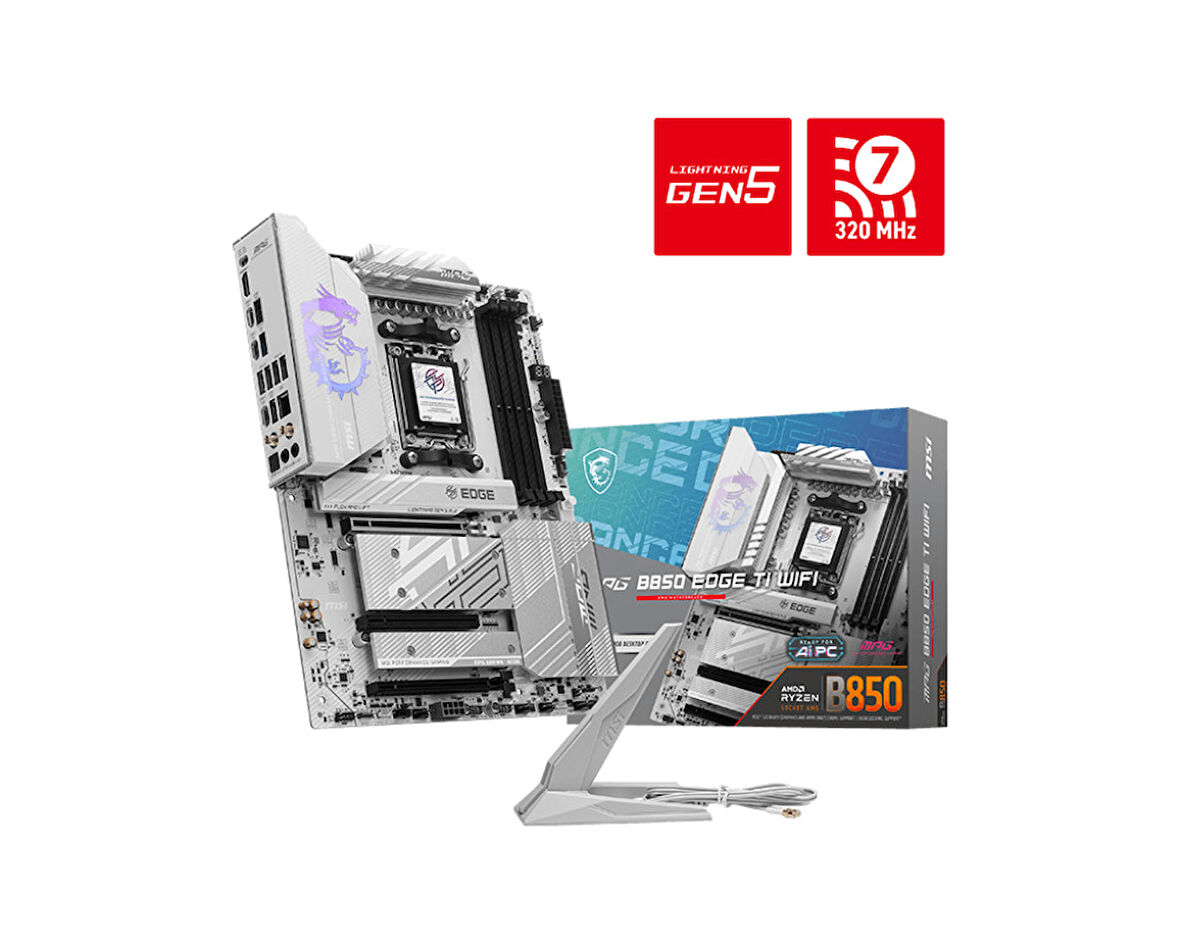

    MB MPG B850 EDGE TI WIFI AM5 DDR5 8400MHZ(OC) HDMI 4x M.2 USB 10Gbs 5G LAN WI-FI 7 ATX

    Msi
    MB MPG B850 EDGE TI WIFI AM5 DDR5 8400MHZ(OC) HDMI 4x M.2 USB 10Gbs 5G LAN WI-FI 7 ATX
    Tüm Ürün Açıklamasını Gör

    20.212,96 TL

    SEPETTE
    19.000,19 TL

    Satıcı: UZMANLARPC

    8.8

    Mağazaya Git

    Diğer Anakart Ürünleri

    Tüm Msi Ürünleri

    Ürün Açıklaması

    MSI MB MPG B850 EDGE TI WIFI AM5 DDR5 8400MHZ(OC) HDMI 4x M.2 USB 10Gbs 5G LAN WI-FI 7 ATX
    ChipsetAMD B850
    CPUSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
    Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8400+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 4800+ MT/s

    Supports AMD POR Speed and JEDEC Speed
    Supports Memory Overclocking and AMD EXPOTM
    Supports Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM, Clock Driver bypass mode only*

    * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
    • The DIMM slots on this motherboard only have single-sided latche.
    • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
    Onboard Graphics1x HDMI™
    Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot3x PCI-E x16 slot
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

    PCI_E1 slot
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

    *PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot
    AudioRealtek® ALC4080 Codec
    7.1-Channel USB High-Performance Audio
    Supports up to 32-Bit/384 kHz playback on front panel
    Supports S/PDIF output
    Storage4x M.2
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
    M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G

    M.2_1 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

    M.2_2 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors)
    • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
    RAID• Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices
    *RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU
    USB4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    1x USB 5Gbps Type A (Rear)
    4x USB 5Gbps Type A (Front)
    2x USB 10Gbps Type A (Rear)
    3x USB 10Gbps Type C (Rear)
    1x USB 20Gbps Type C (Front)
    LAN1x Realtek® 8126 5G LAN

    Internal IO1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x Power Connector(PCIE_PWR 8pin)
    1x CPU Fan
    1x Combo Fan (Pump_Sys Fan)
    6x System Fan
    1x EZ Conn-header (JAF_2)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 5Gbps Type A ports
    1x USB 20Gbps Type C ports
    WIRELESS LAN & BLUETOOTHWi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

    Supports Bluetooth® 5.4**, MLO, 4KQAM

    * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
    LED FEATURE4x EZ Debug LED
    1x EZ Digit Debug LED
    1x EZ Memory Detection LED
    BACK PANEL PORTS
    1. Clear CMOS Button
    2. USB 10Gbps Type-A
    3. USB 5Gbps Type-A
    4. USB 2.0
    5. 5G LAN
    6. Wi-Fi / Bluetooth
    7. Audio Connectors
    8. Flash BIOS Button
    9. HDMI™
    10. USB 10Gbps Type-C
    11. USB 10Gbps Type-A
    12. USB 10Gbps Type-C
    13. Optical S/PDIF Out

    OPERATING SYSTEMSupport for Windows® 11 64-bit
    BOX CONTENT
    PCB InfoATX
    304.8mmx243.84mm
